Every winter, 2702 Rebels students and mentors design, manufacture, wire, and program a brand-new industrial-grade competition robot from scratch. Explore every robot since our 2009 rookie season.

Open source code, CAD & whitepapers →
ROBOT PROFILES (2023–2026)

Modern Era Robots

2026 Arc Flash render2026 · REBUILT

Arc Flash

1 Competition Photos

2026 robot: turret shooter with shoot-on-the-move, spindexer hopper, Custom AprilTag vision system and a Level 1 climb.

Drivetrain
REV MAXSwerve, Kraken X60 + NEO 550
Frame
27.5 × 27.5 in
Top Speed
4.9 m/s (16 ft/s)
Scoring
Turret shooter, 3" flywheels, hood
Intake
Over-bumper linear extend, single roller
Hopper
50 ball capactiy, Spindexer into Feed tower
Vision
2× Jetson Orin, OV9281 cameras
Control System
Java, CANduit, shoot-on-the-move
  • ▸Turret shooter with about 200 degrees of travel each way: 3" flywheels, a powered 1" rolling hood and shoot-on-the-move aiming at roughly ten Fuel per second
  • ▸Spindexer hopper: a 6" centre wheel spinning inside a ring moves the game pieces into a feed tower of 2" wheels up to the shooter
  • ▸Two NVIDIA Jetson Orin coprocessors run AprilTag localisation from OV9281 global-shutter cameras calibrated on a home-built pan-tilt rig
Season Awards (4)All awards & criteria →
District Event Winner (Blue Banner)
Blue Banner Champion★ Blue Banner
↗
District Championship FIRST Leadership Award Semi-Finalist: Aiden
Student Leadership
↗
Woodie Flowers Finalist Award: Terry Fisher (Blue Banner)
Premier Mentor Honour★ Blue Banner
↗
Industrial Design Award
Machine & Form
↗

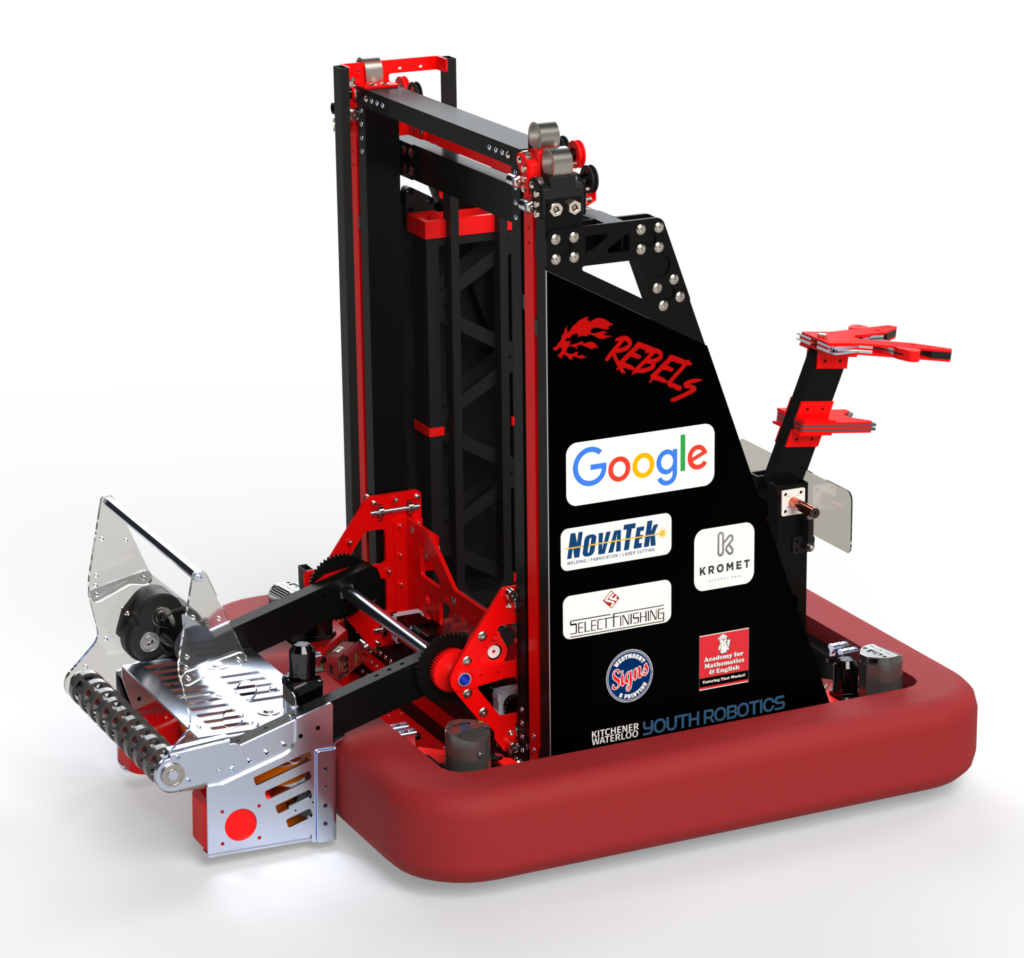

2025 Rattlesnake render2025 · REEFSCAPE

Rattlesnake

4 Competition Photos

2025 robot: over-the-bumper Coral intake on a four-stage elevator, Algae handling, Jetson AprilTag vision and a sub-two-second Cage climb.

Drivetrain
REV MAXSwerve, Kraken X60 + NEO 550
Frame
27 × 27 in
Top Speed
3.7 m/s (12 ft/s)
Scoring
4-stage elevator + pivot, Reef L1–L4
Intake
Over-bumper Coral intake + Algae arm
Endgame
Deep Cage climb, Dyneema winch
Vision
Jetson Nano + Raspberry Pi
Control System
Java, PathPlanner, CANivore + Spark MAX
  • ▸Over-the-bumper ground intake collects Coral from anywhere on the field and turns it square to the bumper on the way in with two stacks of compliant wheels
  • ▸Rope-driven four-stage elevator on two NEOs driven by Talon FXS controllers lifts the pivoting manipulator to score on all four levels of the Reef
  • ▸Single-arm Algae mechanism on the intake removes Algae from the Reef for the Processor or Net
Season Awards (2)All awards & criteria →
Excellence in Engineering Award
Engineering Process
↗
Industrial Design Award
Machine & Form
↗
2024 Chester render2024 · CRESCENDO

Chester

10 Competition Photos

2024 robot: under-the-bumper Note intake, pivoting flywheel shooter and coprocessor AprilTag vision on a swerve chassis.

Drivetrain
REV MAXSwerve, NEO + NEO 550
Frame
25 × 27 in, 27 in tall
Top Speed
5 m/s (16 ft/s)
Scoring
Pivoting flywheel shooter, NEO motors
Intake
Under-bumper rollers
Endgame
Chain climb, parallel hooks
Vision
Banana Pi + Raspberry Pi
Control System
Java, IO layers, 200 Hz odometry
  • ▸Under-the-bumper intake tucked between the swerve modules: four rollers on a single motor pull Notes in through a gap cut in the belly pan
  • ▸Two-axle flywheel shooter on NEO motors, mounted on a pivot and fed by side-mounted compliant wheels that hold the Note at mid-height for a repeatable release
  • ▸Multi-tag AprilTag detection on a Banana Pi coprocessor and Note detection on a Raspberry Pi, published to the roboRIO over NetworkTables
Season Awards (5)All awards & criteria →
District Event Finalist
Playoff Finalist
↗
Quality Award
Robust Engineering
↗
District Championship FIRST Leadership Award Semi-Finalist: Aabjosh
Student Leadership
↗
Innovation in Control Award
Control & Automation
↗
FIRST Leadership Award Finalist: Aabjosh
Student Leadership
↗

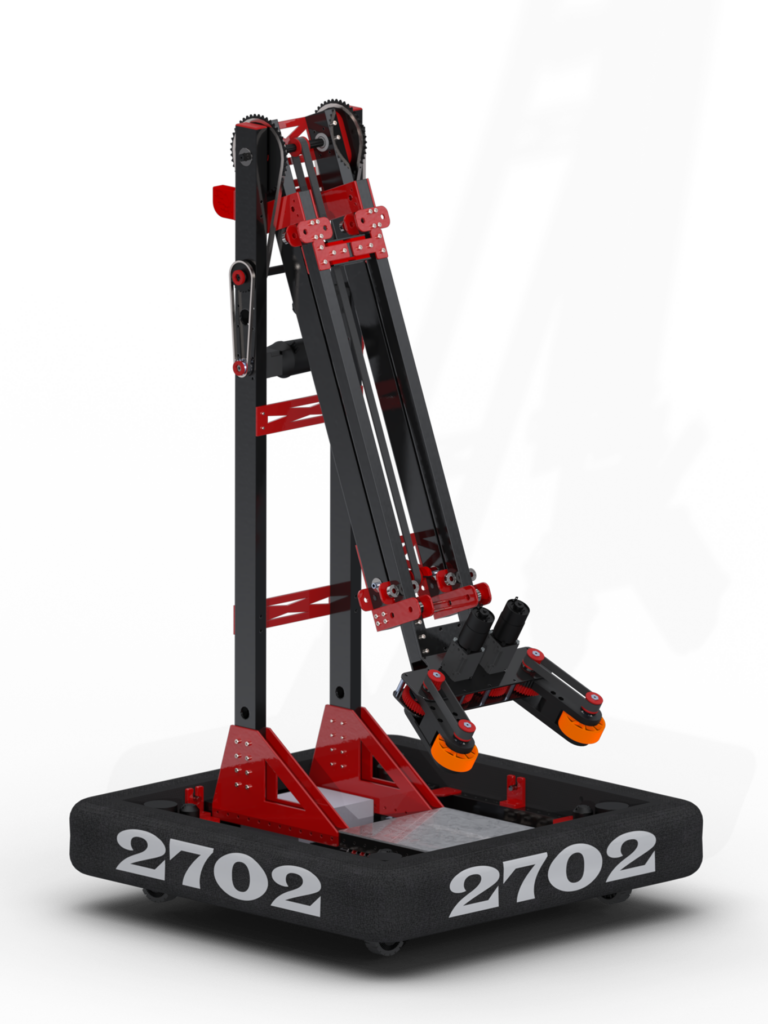

2023 Two-Byte render2023 · CHARGED UP

Two-Byte

9 Competition Photos

2023 robot: the Rebels' first swerve drivetrain, a two-stage extending arm and a compliant-wheel gripper for Cones and Cubes.

Drivetrain
REV MAXSwerve, NEO + NEO 550
Frame
25 × 25 in
Top Speed
4 m/s (13 ft/s)
Scoring
Extending arm, 17.75 in travel
Intake
Compliant-wheel gripper
Endgame
Charge Station auto-balance
Vision
Developed, not used in competition
Control System
C++, REV MAXSwerve template, LED feedback
  • ▸First Rebels robot on a swerve drivetrain after fourteen seasons of tank drive: four REV MAXSwerve modules with NEO drive and NEO 550 steering motors
  • ▸Rotating two-stage extending arm reaches the top Cone node: a NEO on a 45:1 VersaPlanetary and two chain stages swings the shoulder, a NEO 550 extends the stage
  • ▸"Touch it, you own it" gripper: two pivoting jaws with three compliant wheels each grab Cones and Cubes in any orientation
Season Awards (5)All awards & criteria →
Industrial Design Award
Machine & Form
↗
District Championship FIRST Leadership Award Semi-Finalist: Zoe
Student Leadership
↗
Quality Award
Robust Engineering
↗
Judges' Award
Judges' Merit
↗
FIRST Leadership Award Finalist: Zoe
Student Leadership
↗
LEGACY FLEET (2009–2022)

Historical Robot Archive

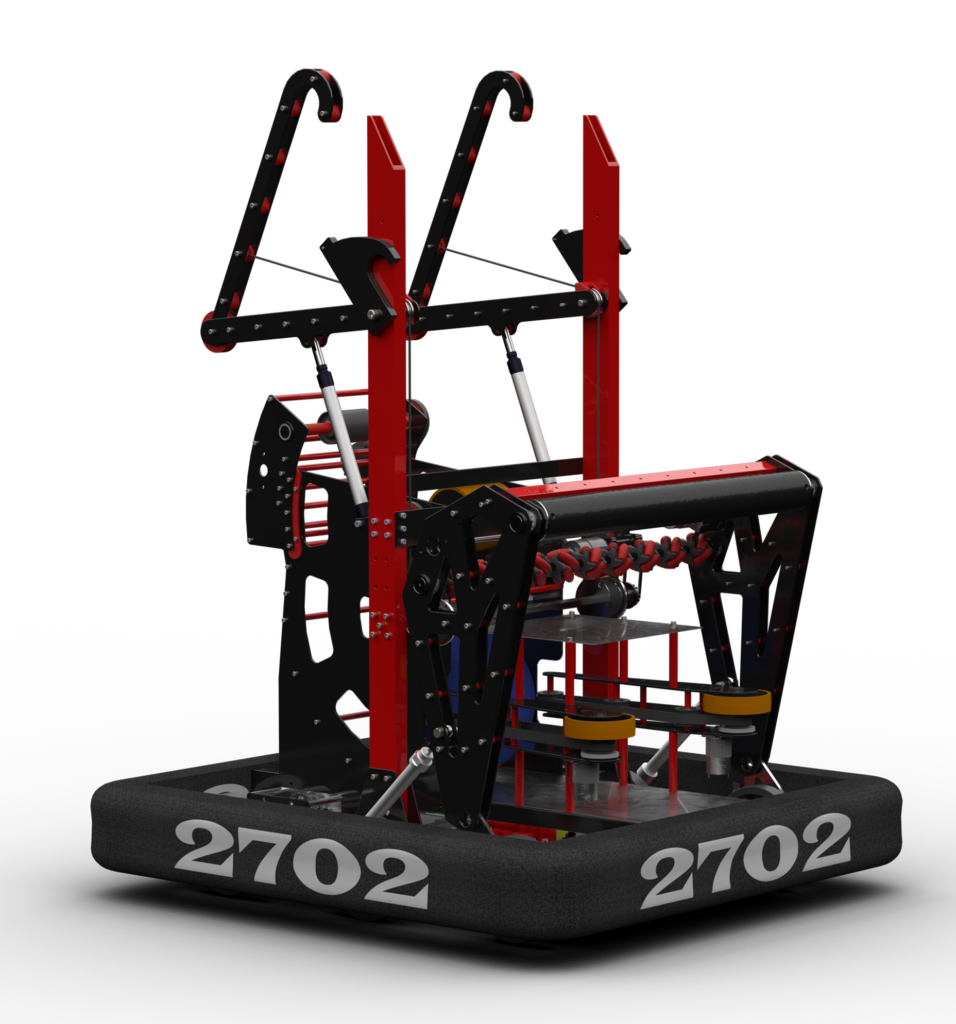

2022 Reuben (RAPID REACT)2022RAPID REACT

Reuben

DrivetrainTank drive
Official RecordNo official events

Built during the pandemic-era. Team 2702 did not enter any official FIRST events in 2022; FIRST and The Blue Alliance have no 2022 season on record for the team. The team competed at Overtime Sunday as Team 9992.

2020 Colt (INFINITE RECHARGE)2020INFINITE RECHARGE

Colt

DrivetrainTank drive
Official RecordEvents cancelled

Both Ontario district events were cancelled by COVID-19 before Colt could compete. Ran the team's BananaPi vision system, documented in the 2020 BananaPi Vision whitepaper.

2019 RoadRunner (DESTINATION: DEEP SPACE)2019DESTINATION: DEEP SPACE

RoadRunner

DrivetrainTank drive
Official Record34-27-0

Creativity Award at Waterloo and Autonomous Award at Western; qualified for the FIRST Championship in Detroit and reached the Daly Division semifinals as 2nd pick of Alliance 7. Seeded 1st at Robots@CNE.

Creativity Award
Mechanical Ingenuity
↗
Autonomous Award
Software & Vision
↗
2018 Optimus Climb (FIRST POWER UP)2018FIRST POWER UP

Optimus Climb

DrivetrainTank drive
Official Record22-23-0

District Engineering Inspiration Award and 1st seed at Western; Creativity Award and 8th-alliance captain at the Provincial Championship (Science Division). Seeded 1st at Robots@CNE.

District Engineering Inspiration Award
Premier Team Inspiration
↗
Creativity Award
Mechanical Ingenuity
↗
2017 R3DP (FIRST STEAMWORKS)2017FIRST STEAMWORKS

R3DP

DrivetrainTank drive
Official Record14-15-0

Creativity Award at McMaster; alliance captain at the University of Waterloo district event. The team's first season in the Ontario district system.

Creativity Award
Mechanical Ingenuity
↗

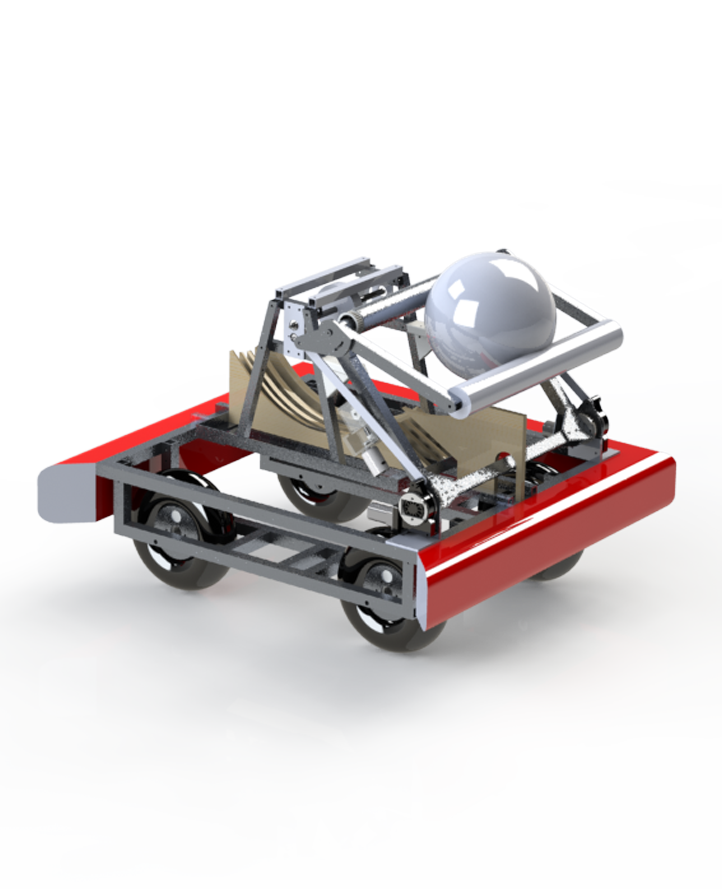

2016 Concorde (FIRST STRONGHOLD)2016FIRST STRONGHOLD

Concorde

DrivetrainTank drive
Official Record7-8-0

Named for Sir Lancelot's coconut-clapping servant, because the robot looked like a horse. 1st pick of Alliance 7 at the Waterloo Regional, reaching the quarterfinals.

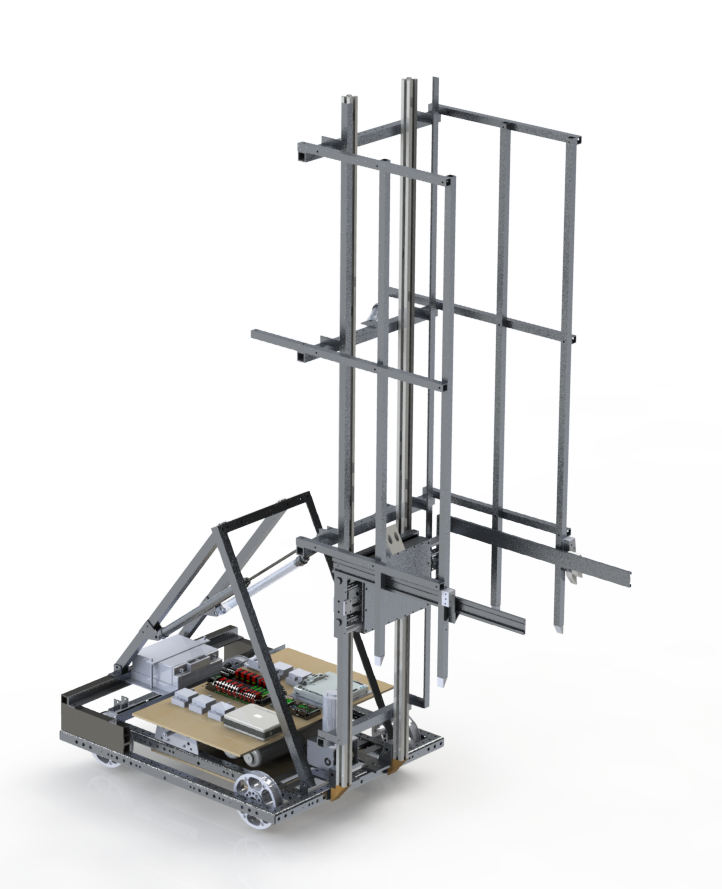

2015 Sparky 4.0 (RECYCLE RUSH)2015RECYCLE RUSH

Sparky 4.0

DrivetrainTank drive
Official RecordWaterloo Regional, ranked 22nd

Competed at the Waterloo Regional. The team also hosted the FIRST® LEGO® League regional at Eastwood Collegiate that year.

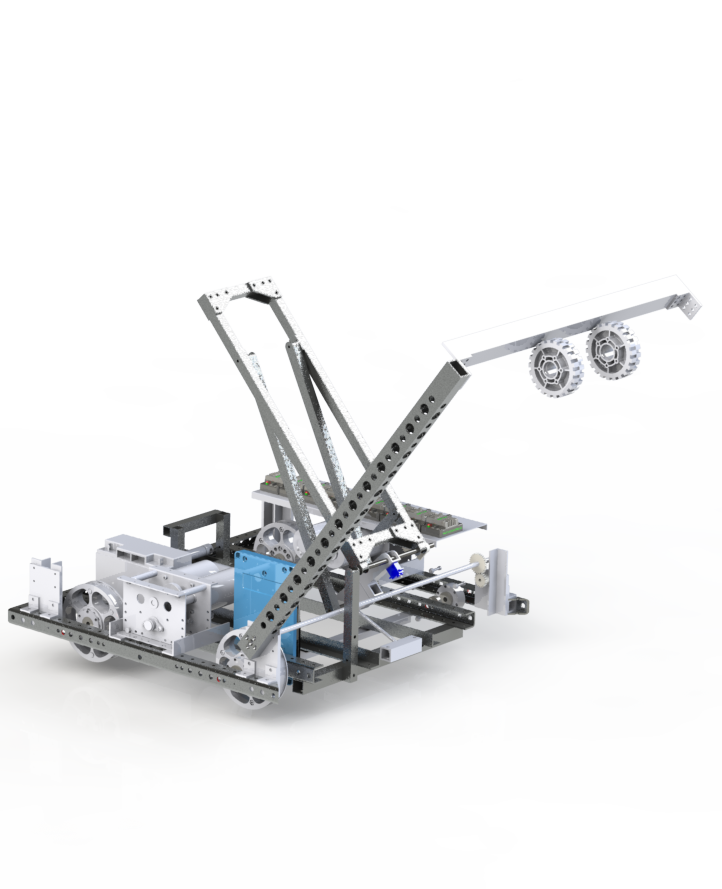

2014 2014 Robot (AERIAL ASSIST)2014AERIAL ASSIST

2014 Robot

DrivetrainTank drive
Official Record5-10-0

Selected to an alliance at the Waterloo Regional. The 2014 robot was never given a name.

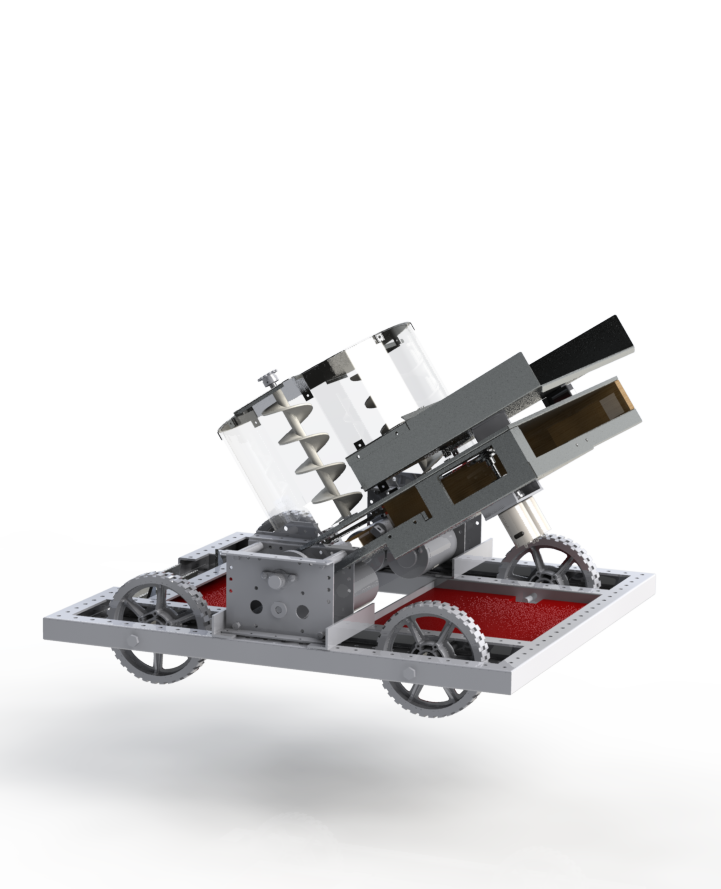

2013 Bunnybot (ULTIMATE ASCENT)2013ULTIMATE ASCENT

Bunnybot

DrivetrainTank drive
Official Record17-15-0

Competed at the Festival de Robotique de Montréal (selected to an alliance) and the Waterloo Regional, where the team ranked 7th.

2012 Two-Thirds (REBOUND RUMBLE)2012REBOUND RUMBLE

Two-Thirds

DrivetrainTank drive
Official Record6-7-0

Selected to an alliance at the Waterloo Regional, where mentor Brad Morris received the Outstanding Volunteer of the Year Award.

Outstanding Volunteer of the Year Award: Brad Morris
Volunteer Honour
↗
2011 Reptar (LOGO MOTION)2011LOGO MOTION

Reptar

DrivetrainTank drive
Official Record25-17-0

Wisconsin Regional champions (Blue Banner) alongside 111 and 2826; Innovation in Control Award and FIRST Leadership Award Finalist Dan at Waterloo; competed in the Curie Division at the FIRST Championship in St. Louis. Named for an intake that resembled a prehistoric bird.

Regional Winner (Blue Banner)
Blue Banner Champion★ Blue Banner
↗
Innovation in Control Award
Control & Automation
↗
FIRST Leadership Award Finalist: Dan
Student Leadership
↗
2010 Low Rider (BREAKAWAY)2010BREAKAWAY

Low Rider

DrivetrainTank drive
Official Record12-12-1

Innovation in Control Award at both the Waterloo and Greater Toronto Regionals. Named for a centre section that raised and lowered.

Innovation in Control Award
Control & Automation
↗
2009 Guillotine (LUNACY)2009LUNACY

Guillotine

DrivetrainTank drive
Official Record8-11-1

Rookie season. Rookie All-Star and Innovation in Control Awards at the Waterloo Regional, then the Newton Division at the FIRST Championship in Atlanta. Also called "Fridge-Bot" for its shape; the front panel slammed down fast enough to earn the name Guillotine.

Rookie All-Star Award
Rookie Achievement
↗
Innovation in Control Award
Control & Automation
↗
