FRC TEAM 2702 COMPETITION ROBOT
Two-Byte
2023 robot: the Rebels' first swerve drivetrain, a two-stage extending arm and a compliant-wheel gripper for Cones and Cubes.
Specifications
- Drivetrain
- REV MAXSwerve, NEO + NEO 550
- Frame
- 25 × 25 in
- Top Speed
- 4 m/s (13 ft/s)
- Scoring
- Extending arm, 17.75 in travel
- Intake
- Compliant-wheel gripper
- Endgame
- Charge Station auto-balance
- Vision
- Developed, not used in competition
- Control System
- C++, REV MAXSwerve template, LED feedback
Overview

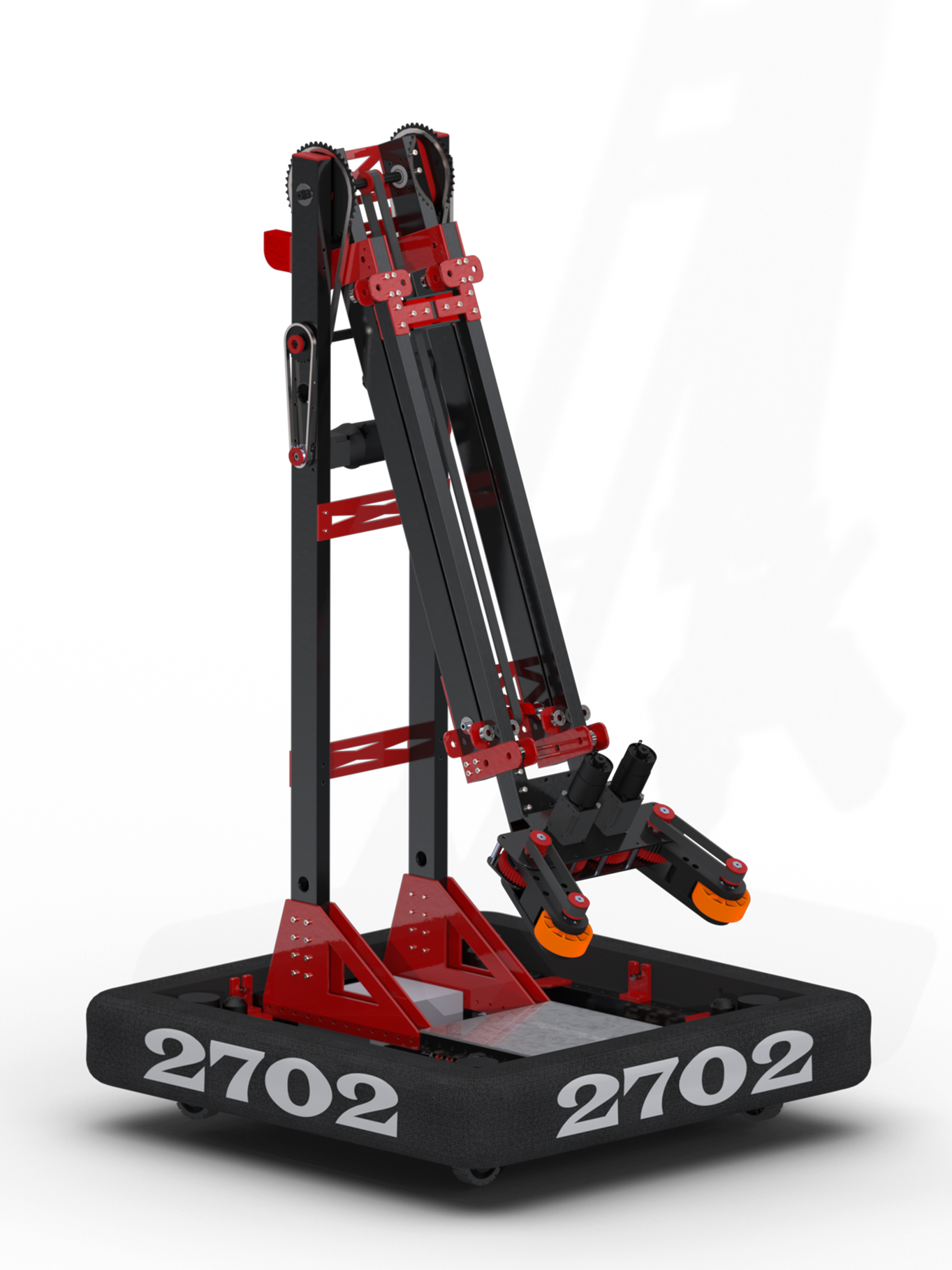

Two-Byte was built for the 2023 season and marked a turning point for the team: it was the first Rebels robot on a swerve drivetrain, after fourteen seasons of tank drive. Four REV MAXSwerve modules, each with a NEO drive motor and a NEO 550 steering motor, carry a fixed tower and a rotating two-stage extending arm. A rolling gripper on the end of the arm collects Cones and Cubes from the floor or the substations and places them on any level of the Grid.
Two-Byte is named after a season long running joke the students had exaggerating a mentor’s fondness for Two-Bite brownies.
Design
- Two arms, built in parallel. A double-jointed arm and a rotating two-stage extending arm were both designed and ordered, with the robot CAD built to toggle between them. The extending arm won: it reaches the top Cone node with the arm below 90 degrees, and its uprights and stages were trimmed repeatedly until it stowed inside the frame with about 40 in of reach beyond the bumpers.
- The intake bake-off. A horizontal roller intake jammed on tip-first Cones and could not take a deflated Cube, and a folding plow with a pneumatic jaw was tried next. The compliant-wheel gripper, with 775 motors on 5 mm belts, won on simplicity; three were built so a spare travelled to every event.
- Electrical in CAD from day one. Components were laid out on the belly pan before the frame was cut, with zip-tie fastening, a short heavy-gauge battery run, and the battery on its side to tune the centre of gravity. A CNC-cut plywood temporary belly pan let the drivebase run weeks before the final parts arrived.
- First-year swerve lessons. Modules were dry-assembled and then thread-locked everywhere the guide called for, after loose screws found their way into the steering gears.
2023 Season
- Newmarket Complex District Event: ranked 7th and captained Alliance 5; won the Industrial Design Award, and Zoe was named a District Championship FIRST Leadership Award Semi-Finalist.
- University of Waterloo District Event: 1st pick of Alliance 5; won the Quality Award.
- FIRST Ontario Provincial Championship (Technology Division): 2nd pick of Alliance 7; won the Judges’ Award, and Zoe was named a FIRST Leadership Award Finalist.
- Regular season record: 25-22-0. Also competed at Robots@CNE and STEMley Overtime Sunday in the off-season.
Subsystem Highlights
- ▸First Rebels robot on a swerve drivetrain after fourteen seasons of tank drive: four REV MAXSwerve modules with NEO drive and NEO 550 steering motors

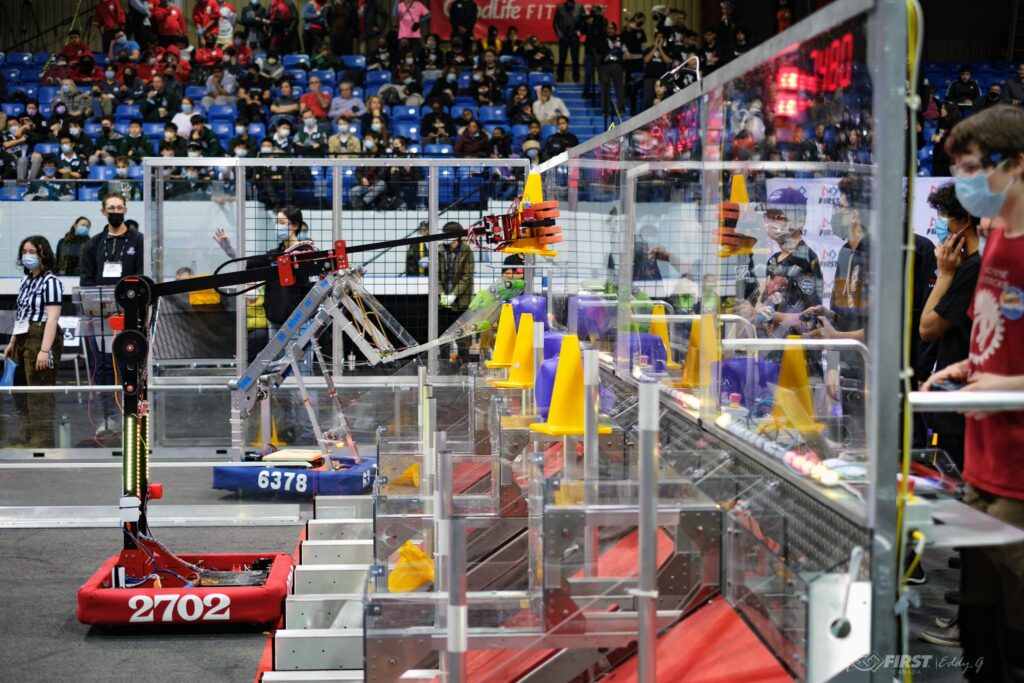

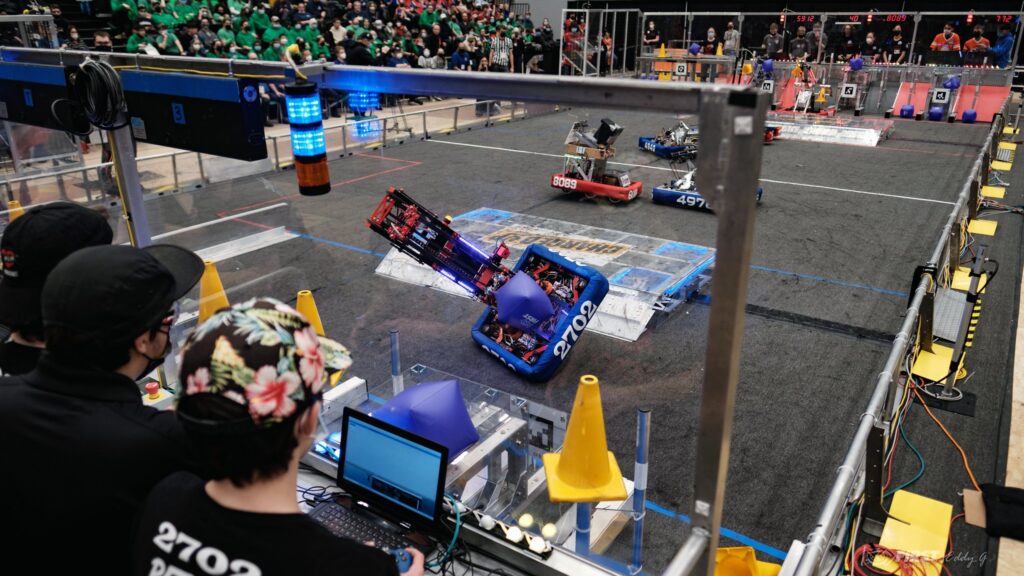

- ▸Rotating two-stage extending arm reaches the top Cone node: a NEO on a 45:1 VersaPlanetary and two chain stages swings the shoulder, a NEO 550 extends the stage

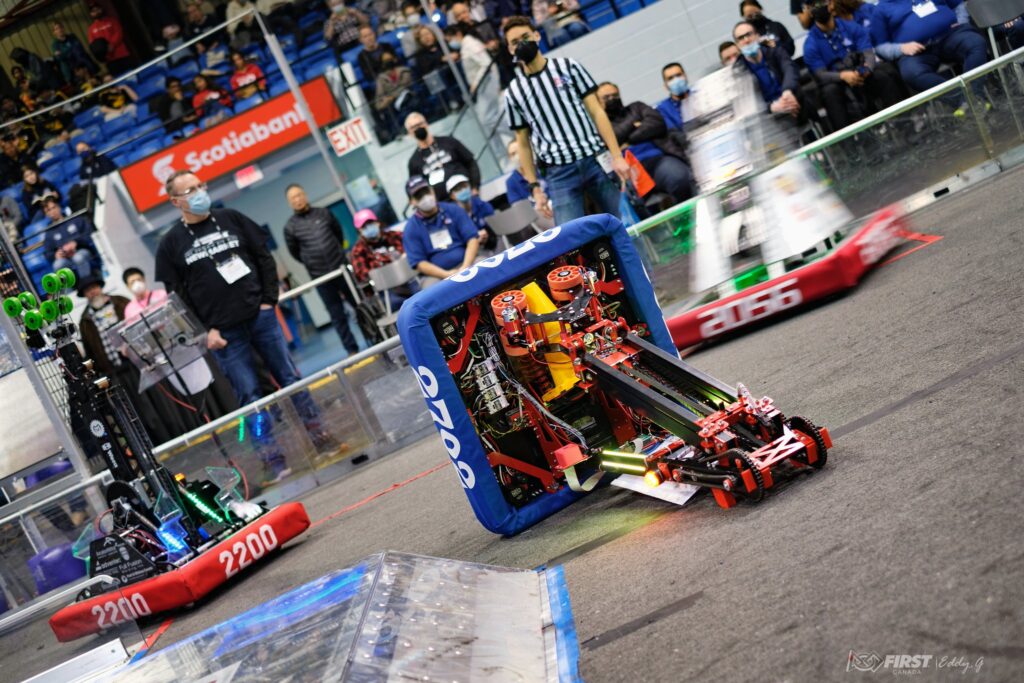

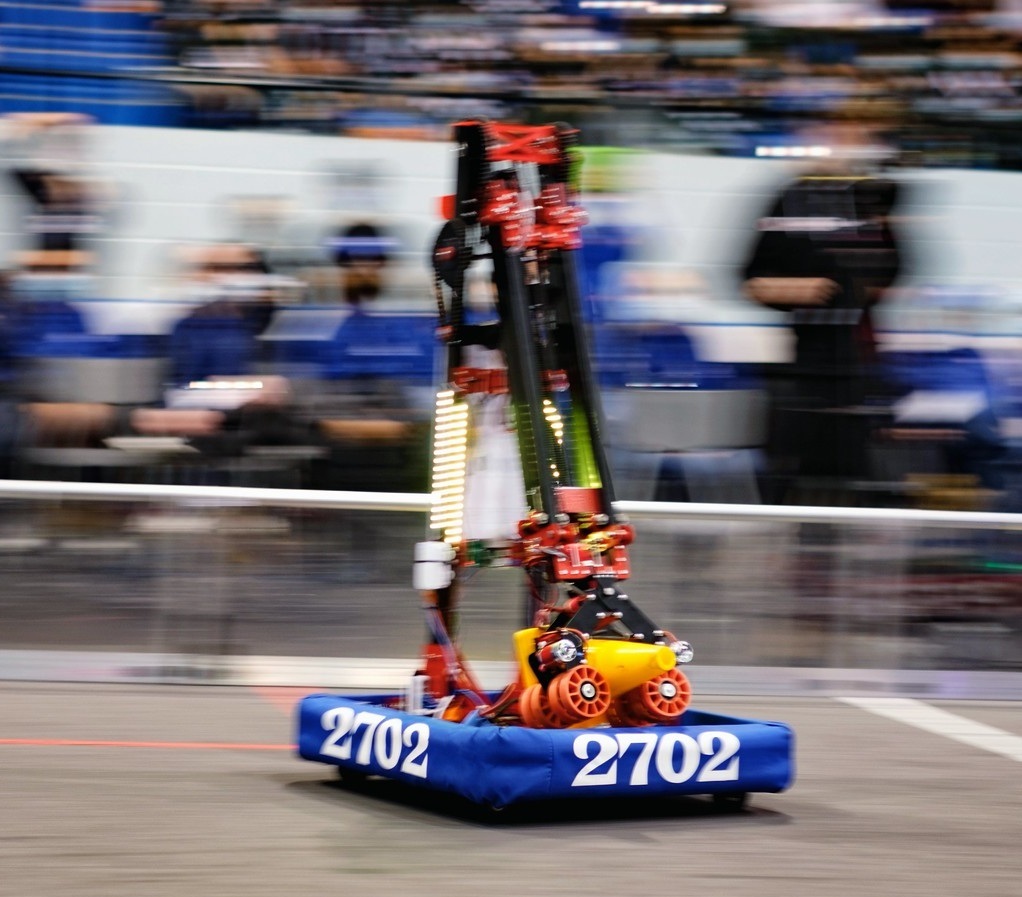

- ▸"Touch it, you own it" gripper: two pivoting jaws with three compliant wheels each grab Cones and Cubes in any orientation

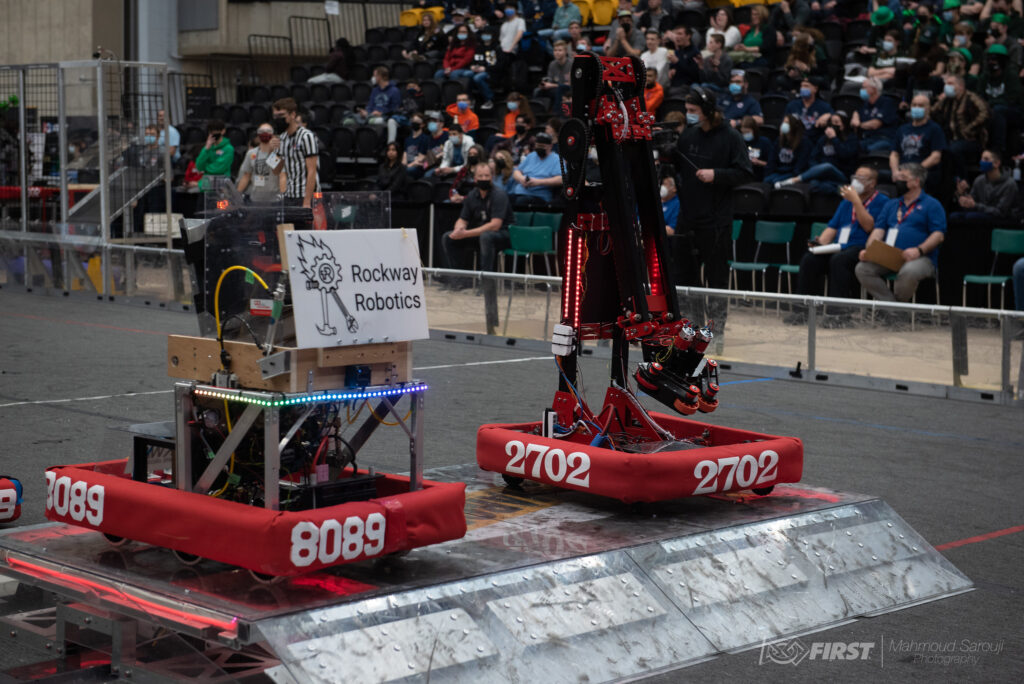

- ▸Pose-based autonomous routines score a game piece, leave the Community and auto-balance on the Charge Station
- ▸Electrical layout designed in CAD from day one, with a plywood temporary belly pan that had the drivebase running weeks before the final parts arrived
2023 Competition Awards
5 AWARDSIndustrial Design Award
Machine & Form
📍 ONT District Newmarket Complex Event
District Championship FIRST Leadership Award Semi-Finalist: Zoe
Student Leadership
📍 ONT District Newmarket Complex Event
Quality Award
Robust Engineering
📍 ONT District University of Waterloo Event
Judges' Award
Judges' Merit
📍 FIRST Ontario Provincial Championship — Technology Division
FIRST Leadership Award Finalist: Zoe
Student Leadership
📍 FIRST Ontario Provincial Championship

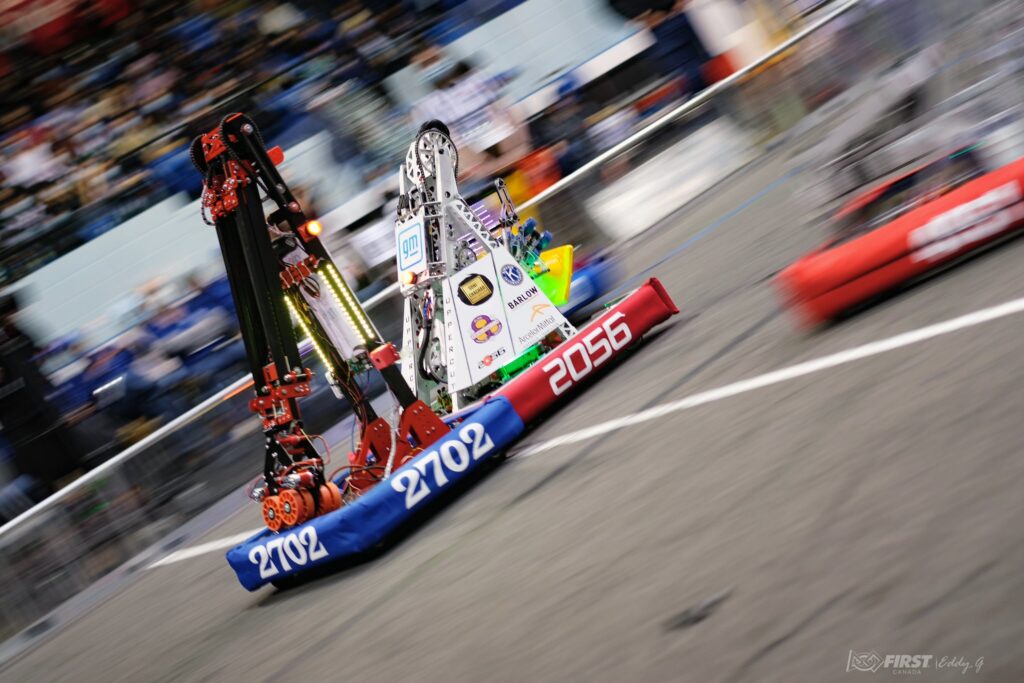

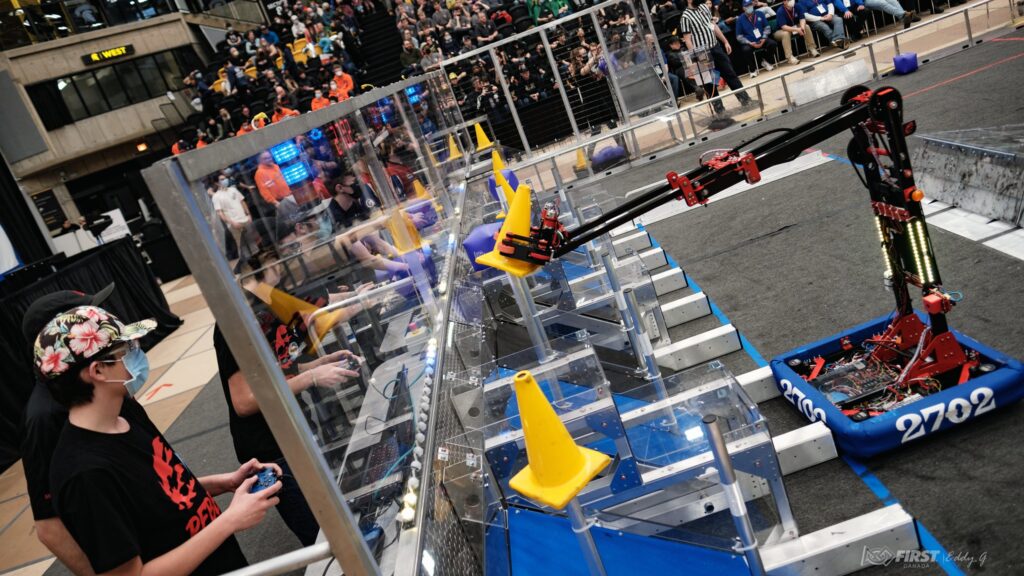

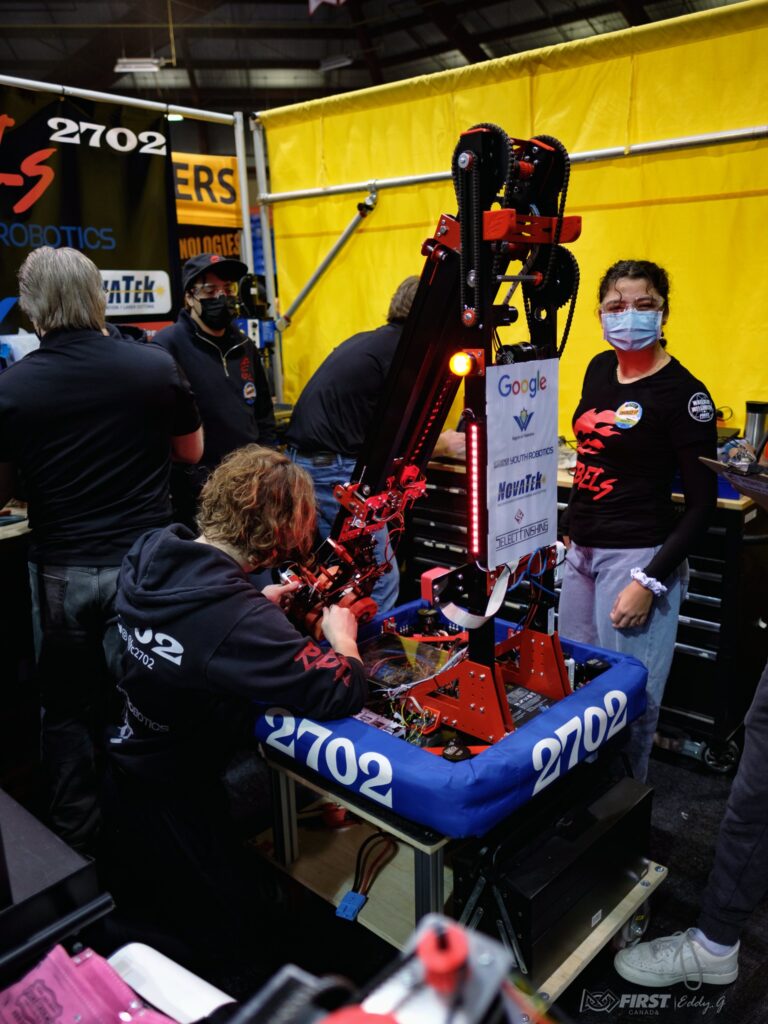

FIELD & PIT PHOTOGRAPHY
