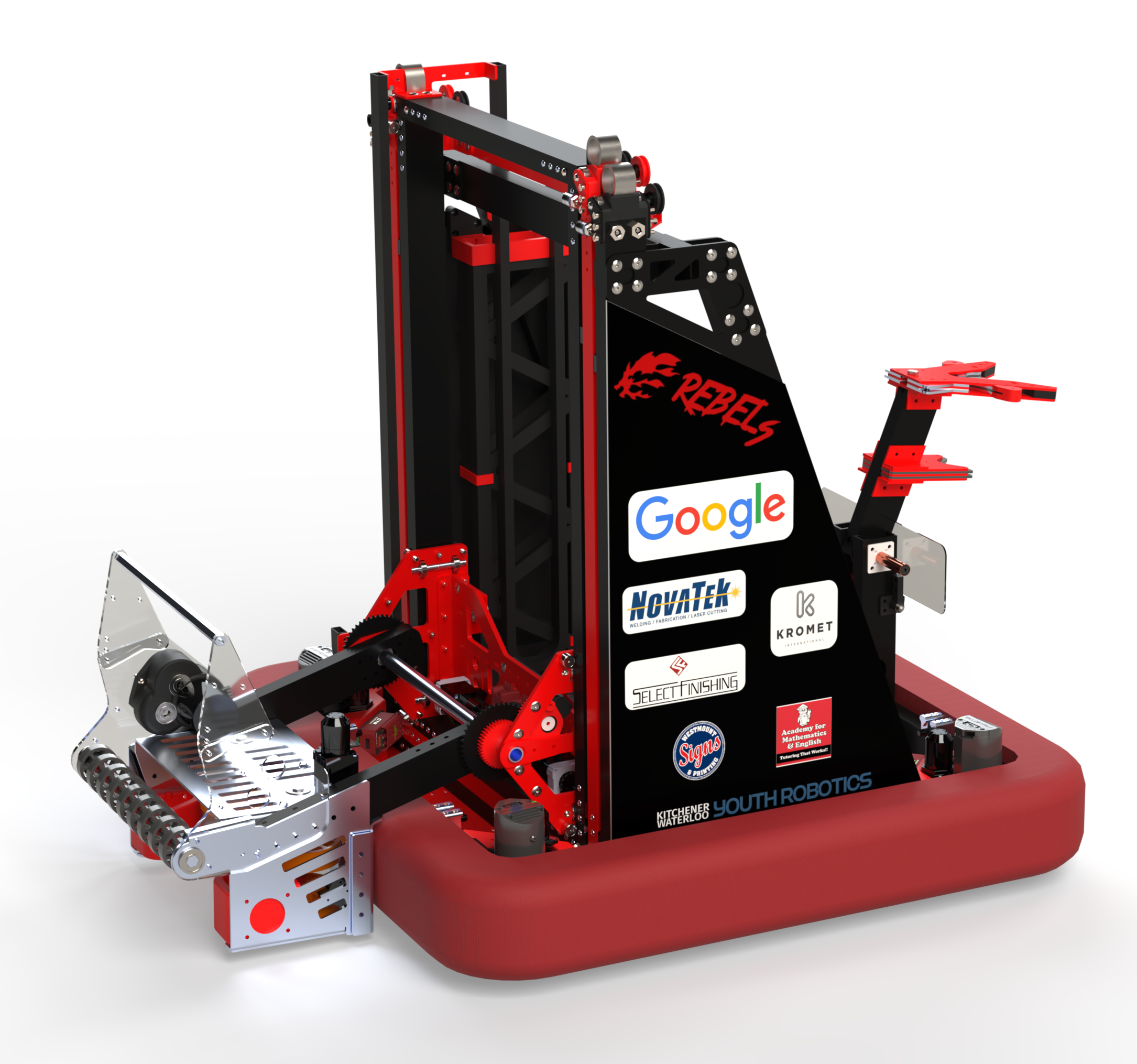

2025 Rattlesnake render2025 · FIRST® REEFSCAPE
FRC TEAM 2702 COMPETITION ROBOT

Rattlesnake

2025 robot: over-the-bumper Coral intake on a four-stage elevator, Algae handling, Jetson AprilTag vision and a sub-two-second Cage climb.

Specifications

Drivetrain
REV MAXSwerve, Kraken X60 + NEO 550
Frame
27 × 27 in
Top Speed
3.7 m/s (12 ft/s)
Scoring
4-stage elevator + pivot, Reef L1–L4
Intake
Over-bumper Coral intake + Algae arm
Endgame
Deep Cage climb, Dyneema winch
Vision
Jetson Nano + Raspberry Pi
Control System
Java, PathPlanner, CANivore + Spark MAX

Overview

Rattlesnake was built for the 2025 season on a 27 × 27 in swerve chassis: REV MAXSwerve modules re-motored with Kraken X60 drive motors and NEO 550 steering on Talon FXS controllers, run on CTRE’s Phoenix 6 over a CANivore bus. It has a ground intake which rotates out over the robot’s bumpers to be able to intake the CORAL game piece from anywhere on the field. The intake is raised and lowered on a 4-stage elevator. It is capable of scoring on all four levels of the REEF. The intake also has an algae mechanism to be able to remove the ALGAE game piece from the reef and score it in the PROCESSOR or NET. For the endgame, the robot has a climb mechanism that enables it to grab onto the CAGE and climb in under two seconds for maximum END GAME points.

RattleSnake is named after the sounds it makes from all the drilled out rivets bouncing around inside the box tubing as it deploys it’s intake or drives around the field.

Design

  • Pick up in front, place behind. The intake collects over the front bumper and the manipulator scores off the back, so a cycle needs no turning.
  • A reorienting intake, tuned by hand. Three prototype boxes settled the geometry: a 2 in compliant front roller, two rear stacks of wheels 13 in apart so a Coral can never enter parallel to the bumper, and curved printed deflectors instead of front rollers. Adding a third wheel to each rear stack cured about 95% of jams.
  • The climb that failed on current, not gearing. The first climb attempt stalled on a 30 A current limit. A torque calculation showed about 220 lb at the rope, so the spool went from 3 in to 2 in and the limit to 60 A, and the climbs succeeded. A polycarbonate ramp drops onto the bumper when the arm deploys so the Cage cannot hang up on it.
  • A fan, not code. Coral detection latency rose from 30 ms to 100 ms as the Raspberry Pi heated up; a larger printed case with a regulator and a 40 mm fan fixed it.
  • Team-made sensor wiring. Beam-break and limit switches run through the team’s “Unpluginator” board into the Spark MAX limit inputs.

Vision

AprilTag localisation runs on an NVIDIA Jetson Nano with two 145 Hz OV9281 global-shutter cameras and a custom CUDA port of the AprilTag detector, the system described in the team’s 2024 Quick Intro to Computer Vision whitepaper and shipped as the Jetson OV9281 driver package. Coral detection runs separately on a Raspberry Pi in C++ with OpenCV, sending object vectors to the roboRIO over UDP.

2025 Season

  • Niagara College District Event: 2nd pick of Alliance 7; won the Industrial Design Award.
  • University of Waterloo District Event: ranked 7th, 1st pick of Alliance 3; won the Excellence in Engineering Award.
  • FIRST Ontario Provincial Championship (Technology Division): ranked 12th and captained Alliance 8.
  • Regular season record: 22-23-1. Also competed at Robots@Mary Ward and Overtime Sunday in the off-season.

Subsystem Highlights

  • ▸Over-the-bumper ground intake collects Coral from anywhere on the field and turns it square to the bumper on the way in with two stacks of compliant wheels
  • ▸Rope-driven four-stage elevator on two NEOs driven by Talon FXS controllers lifts the pivoting manipulator to score on all four levels of the Reef
  • ▸Single-arm Algae mechanism on the intake removes Algae from the Reef for the Processor or Net
  • ▸Deep Cage climb: a side-mounted fork latches the Cage and a ratcheting NEO winch on Dyneema rope lifts the robot in under two seconds
  • ▸AprilTag localisation on an NVIDIA Jetson Nano with two OV9281 global-shutter cameras and a custom CUDA port of the AprilTag detector

2025 Competition Awards

2 AWARDS
Excellence in Engineering Award
Engineering Process
↗
📍 ONT District University of Waterloo Event
Industrial Design Award
Machine & Form
↗
📍 ONT District Niagara College Event
FIELD & PIT PHOTOGRAPHY

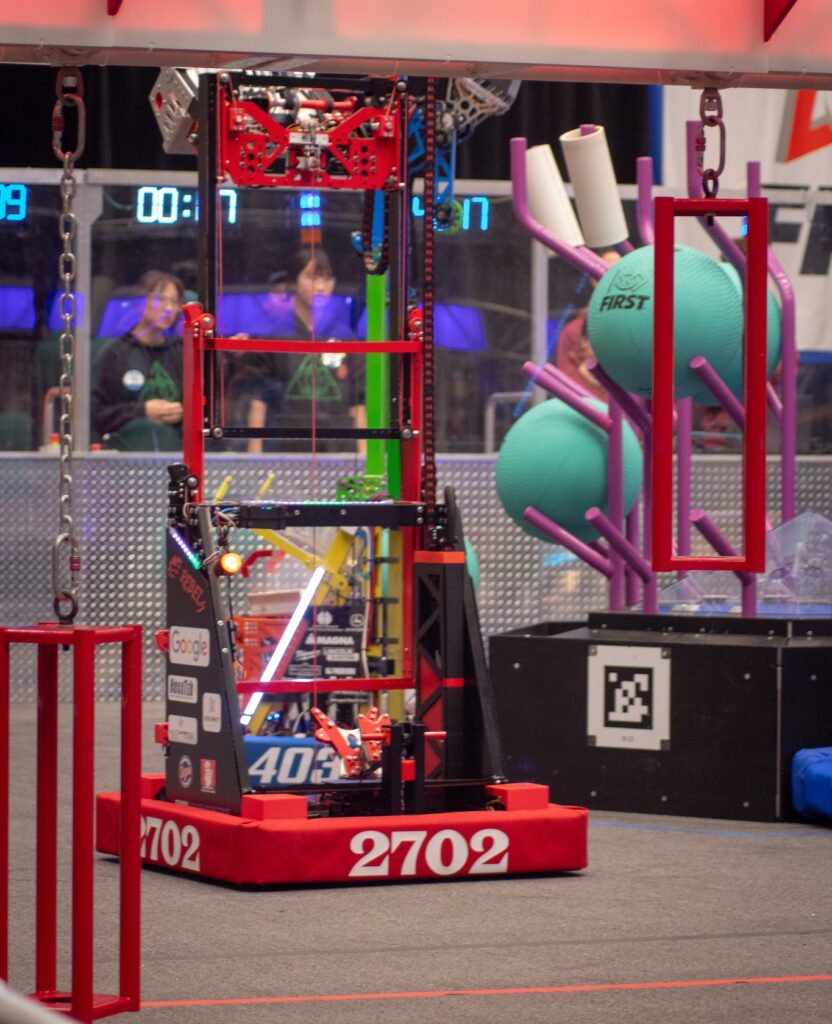

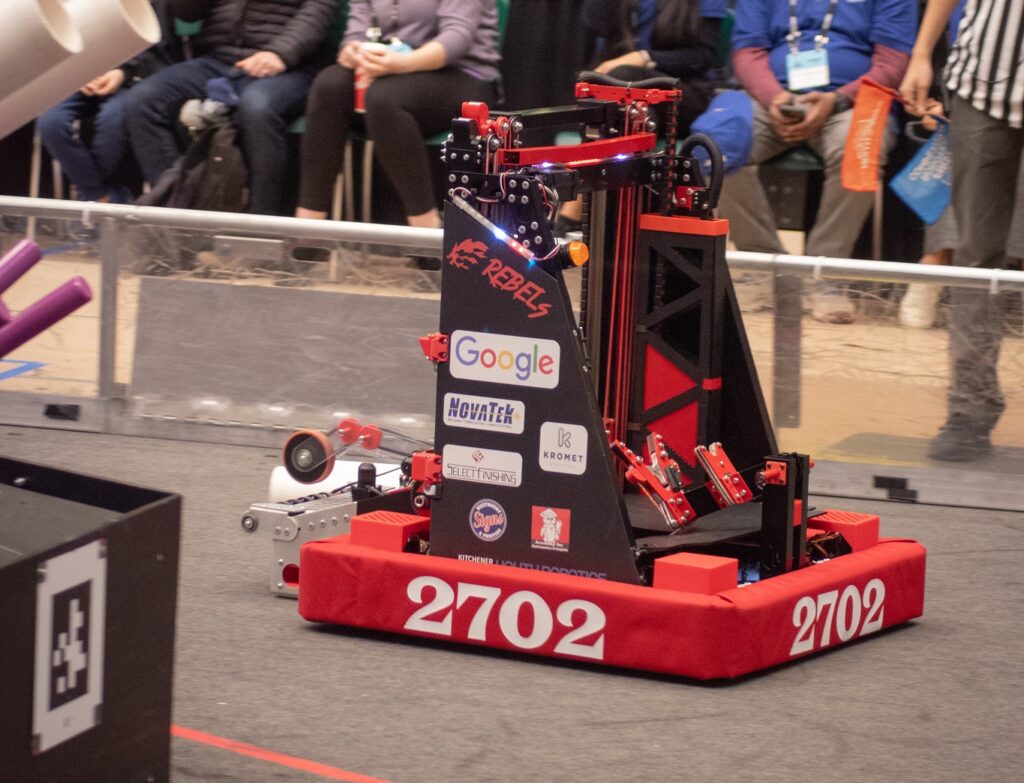

Rattlesnake in Action (4 Photos)
