2024 Chester render2024 · FIRST® CRESCENDO
FRC TEAM 2702 COMPETITION ROBOT

Chester

2024 robot: under-the-bumper Note intake, pivoting flywheel shooter and coprocessor AprilTag vision on a swerve chassis.

Specifications

Drivetrain
REV MAXSwerve, NEO + NEO 550
Frame
25 × 27 in, 27 in tall
Top Speed
5 m/s (16 ft/s)
Scoring
Pivoting flywheel shooter, NEO motors
Intake
Under-bumper rollers
Endgame
Chain climb, parallel hooks
Vision
Banana Pi + Raspberry Pi
Control System
Java, IO layers, 200 Hz odometry

Overview

Chester competed in the 2024 season. It kept Two-Byte’s REV MAXSwerve drivetrain on a slightly longer 25 × 27 in frame and was built low enough to drive under the Stage. Notes are collected by an under-the-bumper roller intake set between the swerve modules, handed to a pair of side-mounted compliant feed wheels, and launched by a pivoting two-axle flywheel shooter on NEO motors.

Chester is named after Chester Cheetah the Cheeto mascot due to the orange dust the game piece sheds all over the robot, for which the students aptly named “Cheeto Dust”.

Design

  • Compression beats grip. Early tests with mecanum wheels shredded Notes; compliant wheels and a textured silicone baking sheet gripped best, and the intake was designed around maximum compression.
  • Under the bumper, not over it. To-scale sketches of cycle paths favoured an under-bumper intake over the 2020 and 2022 style over-bumper pivot. Flat ramps jammed Notes, curved ramps worked, and a small 0.5 in front roller finally let the Note climb into the robot with no ramp at all.
  • Wheels, not rollers, in the shooter. Slow-motion video showed Notes stretching on silicone rollers, so a wheel shooter was adopted. The conclusion from testing was that spin is unnecessary and a consistent feed matters most, which drove the side-wheel feed design.
  • The climb set the layout. A 10 in clearance zone for the Stage chain dictated which side the intake sat on and where its motor went.

2024 Season

  • Georgian District Event: ranked 6th, selected 1st by Alliance 2, and reached the finals as District Event Finalist; won the Quality Award, and Aabjosh was named a District Championship FIRST Leadership Award Semi-Finalist.
  • University of Waterloo District Event: 1st pick of Alliance 4; won the Innovation in Control Award.
  • FIRST Ontario Provincial Championship (Science Division): 2nd pick of Alliance 4. Aabjosh was named a FIRST Leadership Award Finalist.
  • Regular season record: 22-25-1. Captained Alliance 2 at Robots@CNE in the off-season.

Vision

Chester carried two coprocessors: a Banana Pi running the team’s custom vision app with a multi-tag AprilTag detector, and a Raspberry Pi running Note detection that published bounding boxes to the roboRIO over NetworkTables. After the season the vision team wrote the 2024 Quick Intro to Computer Vision whitepaper and moved to an NVIDIA Jetson with OV9281 global-shutter cameras, the system that flew on Rattlesnake in 2025.

Subsystem Highlights

  • ▸Under-the-bumper intake tucked between the swerve modules: four rollers on a single motor pull Notes in through a gap cut in the belly pan
  • ▸Two-axle flywheel shooter on NEO motors, mounted on a pivot and fed by side-mounted compliant wheels that hold the Note at mid-height for a repeatable release
  • ▸Multi-tag AprilTag detection on a Banana Pi coprocessor and Note detection on a Raspberry Pi, published to the roboRIO over NetworkTables
  • ▸Java code with hardware IO layers for simulation and replay, and a 200 Hz odometry thread for pose estimation

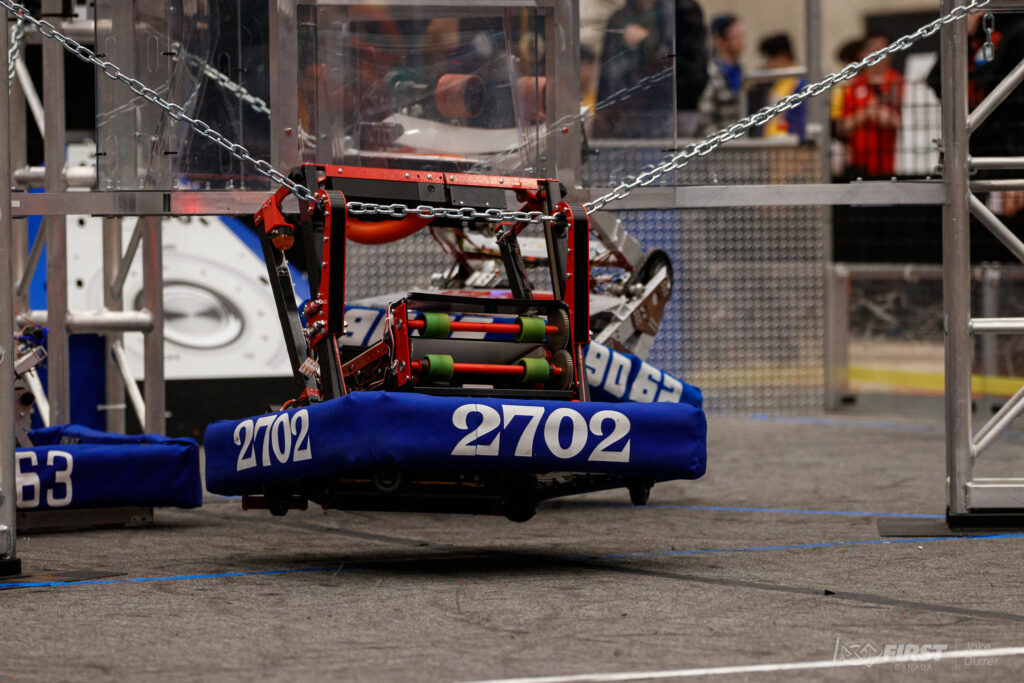

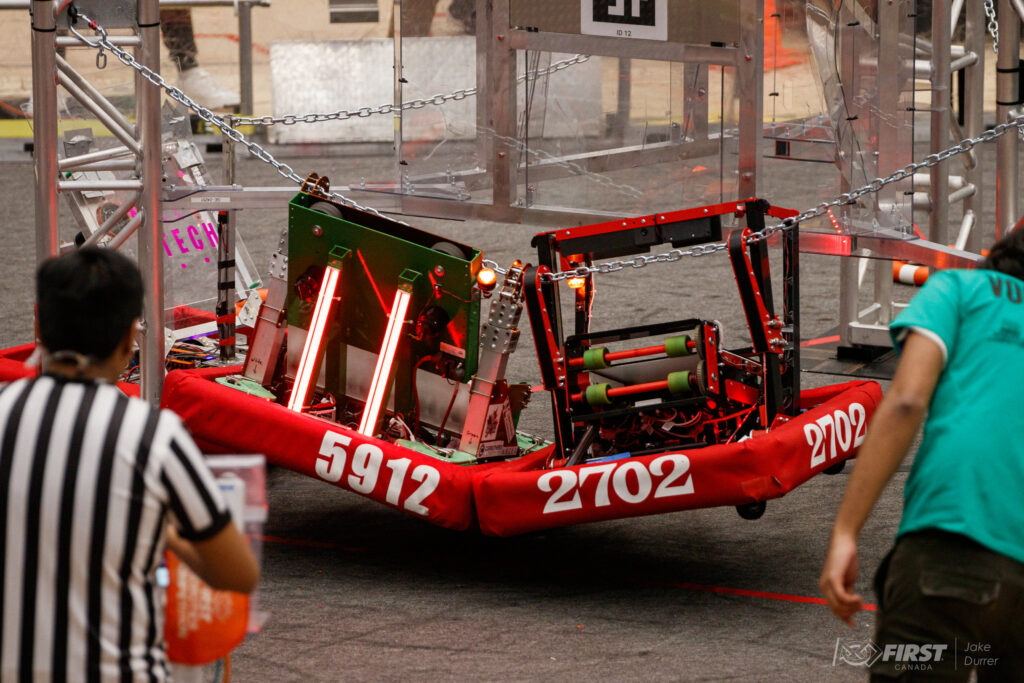

  • ▸Built 27 in tall to drive under the Stage, with parallel hooks for the chain climb

2024 Competition Awards

5 AWARDS
District Event Finalist
Playoff Finalist
↗
📍 ONT District Georgian Event
Quality Award
Robust Engineering
↗
📍 ONT District Georgian Event
District Championship FIRST Leadership Award Semi-Finalist: Aabjosh
Student Leadership
↗
📍 ONT District Georgian Event
Innovation in Control Award
Control & Automation
↗
📍 ONT District University of Waterloo Event
FIRST Leadership Award Finalist: Aabjosh
Student Leadership
↗
📍 FIRST Ontario Provincial Championship
FIELD & PIT PHOTOGRAPHY

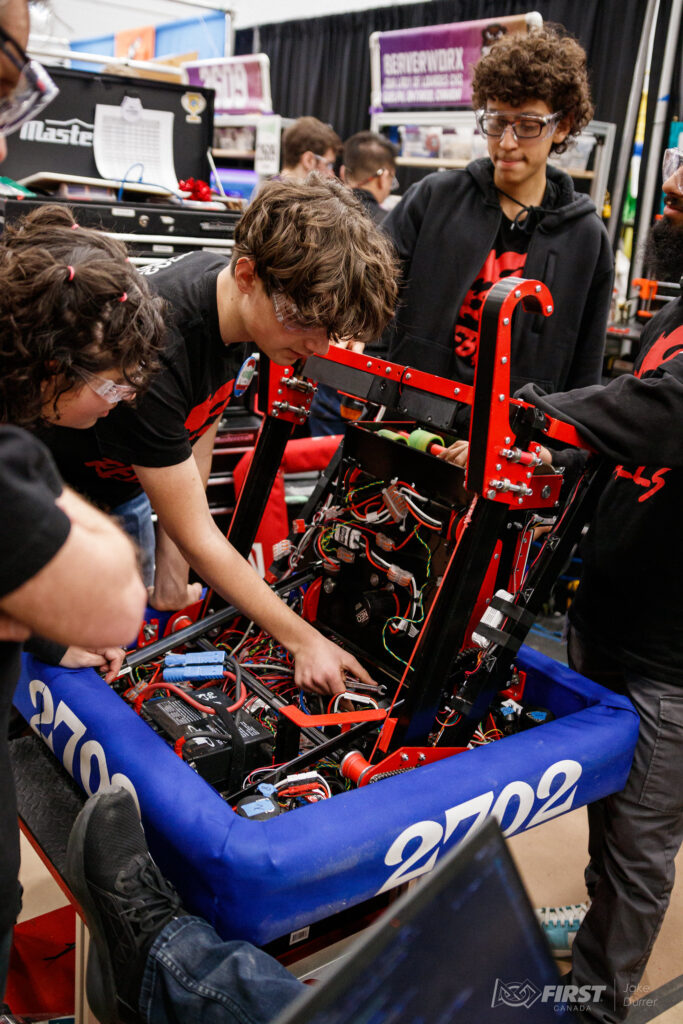

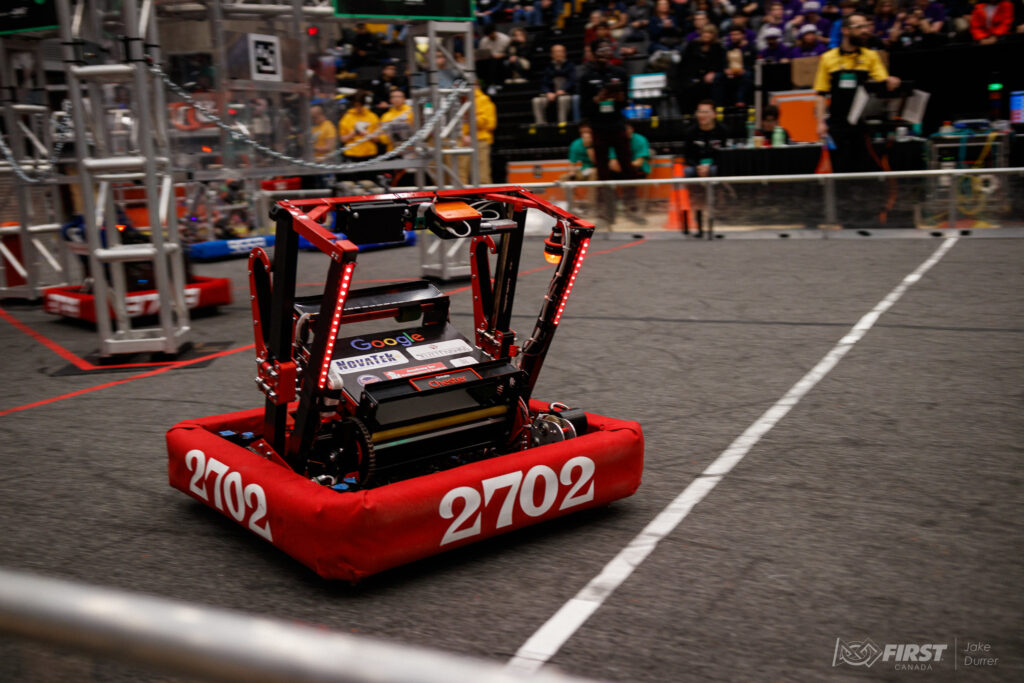

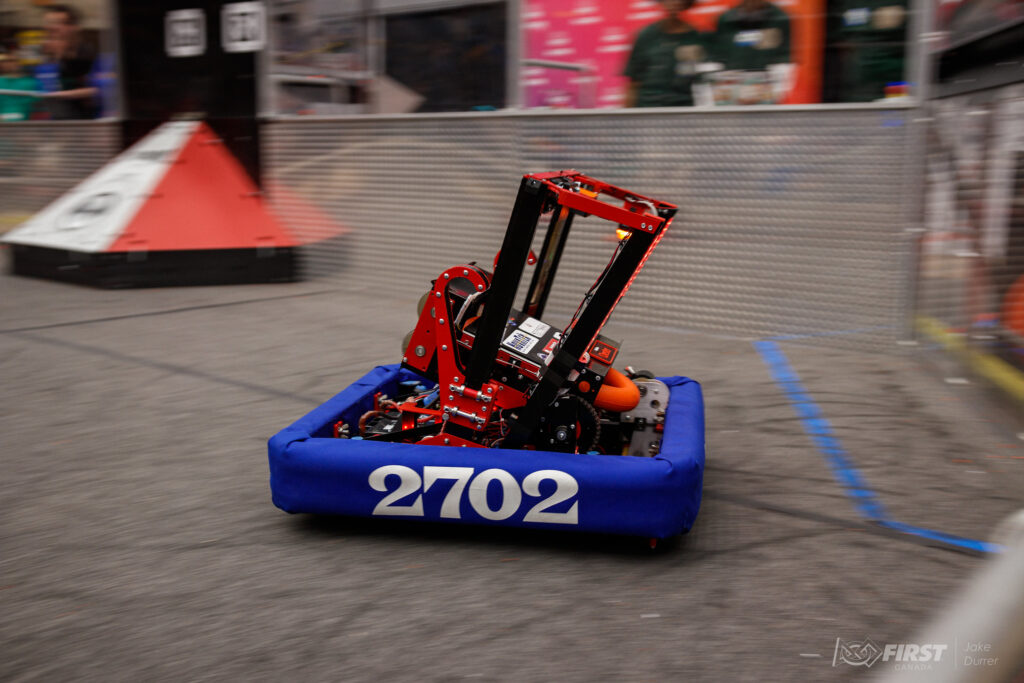

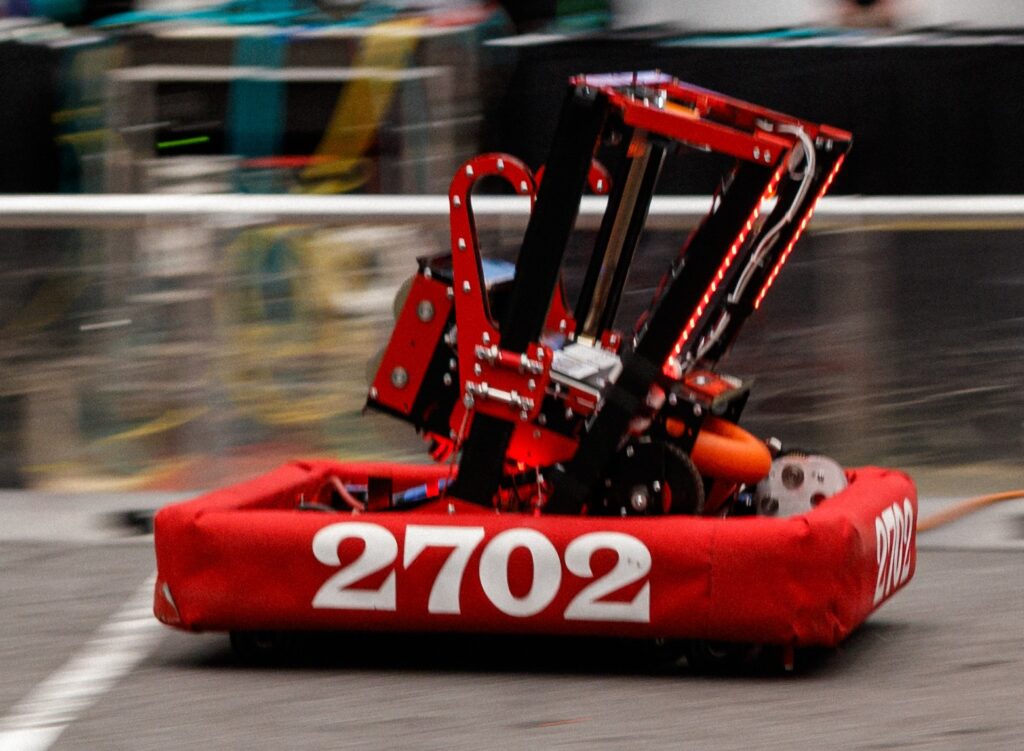

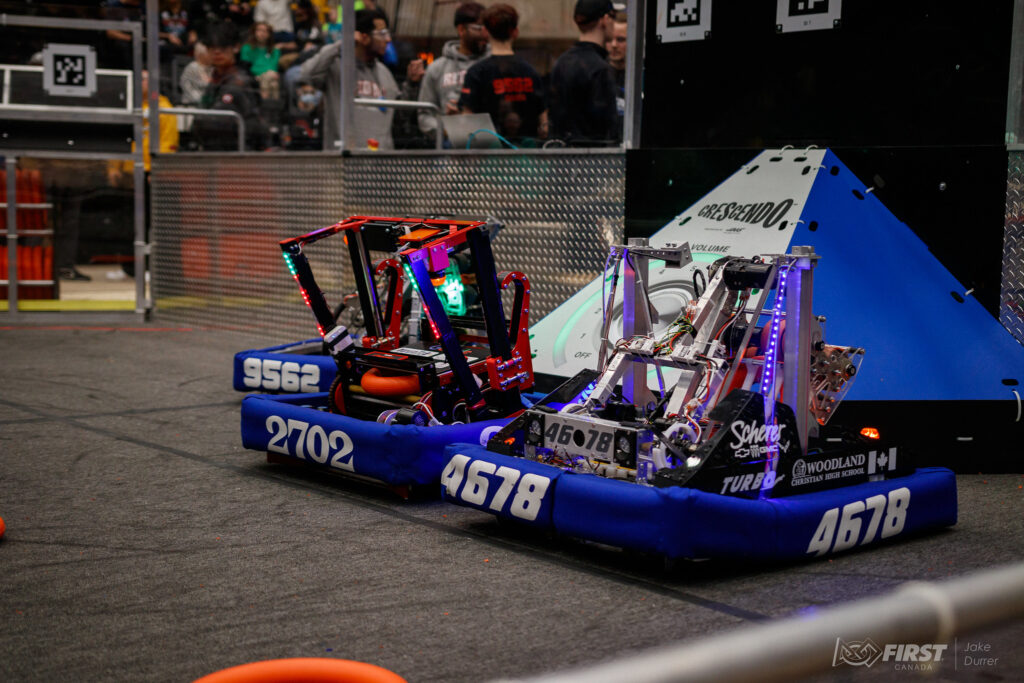

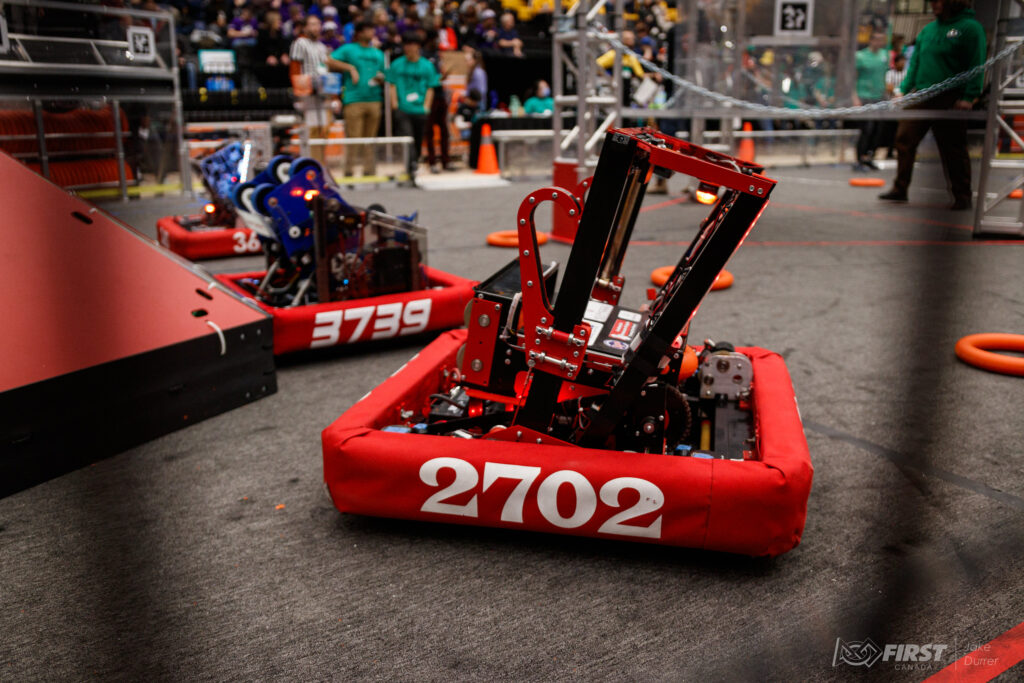

Chester in Action (10 Photos)
